Consumópolis at I.E.S de Catabois: recycling and reusing to make new products.

CONSUMÓPOLIS: INTRODUCTION TO THE PROJECT.

Through the present year, our school, I.E.S. de Catabois in Ferrol, Spain, has been taking part in a project called ‘Consumópolis’. We consider it a preparation for an Erasmu+ KA we have applied for, which is called ‘Recyclart’.

This project was born to make the students aware of the importance of recycling, reducing and reusing so that they realize how our lives can change for the better and how we can keep sustainability at acceptable levels thanks to recyclage.

Here is how it worked:

CATEGORIES.

It consisted in creating some products from waste or unused materials.

As the project was really engaging to students, three groups out of four in total at school designed and built products. All of them were presented to the “Consumópolis” contest and two of them won second prizes.

1st year ESO: Rubber trainers

3th year ESO: USB fan

4th year ESO: Solar oven

DESCRIPTION OF THE PRODUCTS CREATED.

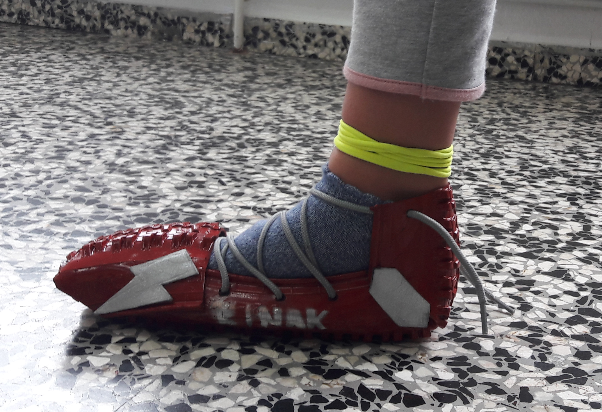

1ST year ESO: RINAK RUBBER SPORT TRAINERS

Choosing the product

There were three suggested types of products to choose from: clothes, electronic devices or sports clothing. Each of the three participating levels had to select one of them. The students in this year chose sports clothing. After brainstorming, the group decided to make a pair of trainers especially designed for running using recycled rubber from bicycle tyres.





Required materials

It was agreed that the trainers would be tied with laces and would be adorned with designs made of foamy, would be painted in red and adorned with silver-coloured foamy. In addition, they would display the name of the group, RINAK, on both sides. Most materials like foamy, both red and silver spray-on acrylic paint, glue, silicone, staples, cutter, scissors, silicone gun and stapler were available at school. We got the bicycle tyre from a scrapyard, the mentor of the group lent us a belt drill and the laces were a pair of spare ones which hadn’t been used.



Manufacturing process

The cover was cut into four pieces. It was analysed how the trainers could be made by folding the material and studying what the best shape could be. When it was clear enough, we measured the size from a fellow student foot. One of the trainers was formed by shaping it to the foot, then closing and stapling it. The spare parts of the cover were cut.

When the student who was acting as a model tried the design, we found out that the staples got caught up and we had to undo everything and staple it again but this time from the inside to the outside. It was agreed that the staples had to be covered so we designed foamy shapes to do so. Once the trainers had been finished, we had to make the lace holes. By using a belt drill, we could make them with effort.

The next step consisted in colouring the trainers in red with the spray-on acrylic paint. While a few students were colouring them, some others were cutting and painting in silver the shapes of foamy.





3RD year ESO: USB fan

Choosing the product

In the first session of work, this group decided to choose an electronic device amongst the proposed fields. After carrying out a little brainstorming it was agreed that the product to be made would be a USB fan. It made sense as it would refresh the ICT classrooms which gave off a lot of heat due to the simultaneous use of lots of computers.



Required materials

The students suggested ideas about the design of the device and the materials were selected accordingly. The fan would be built entirely with recycled materials: the base and the screws would be made from waste cardboard, the stand would come from a cylindrical roll of aluminium foil, which had been finished, the USB cable belonged to the mouse of a computer which didn’t work as well as the engine was got from a toy which wasn’t used any more. All was painted in silver and black. All the materials like cardboard, silver and black spray-on acrylic paint, silicone, cutter, scissors, compass, silicone gun, USB cable and engine were available at school.





Manufacturing process

1. In pairs, the plug on the opposite side of the one which must be connected to the computer was cut from the cable. The plastic cover which protects the wire was removed with the help of the technology teacher. Then four wires in different colours showed up: white, green, red and black. The green and white wires were cancelled with the use of some tape while the ones remaining (red and black) were peeled as they would be the ones to establish the connection and transmit electricity.

2. The other members of the team drew a circle with the compass and cut (as symmetrically as possible) 8 sections which would form the screws to provide wind.

3. Afterwards, the silicone gun was used to separate the screws permanently and to tilt them so as to provide the fan with a suitable propeller.

4. Once we had got the propeller, a new circle which would serve as the base was cut. It was attached to the cylindrical roll of aluminium foil which would hold the screw engine.

5. Then we made a hole, which would allow to insert and keep the USB cable inside the cylindre, in the lower part of the stand. This cable would provide the connection between the engine and the USB port. The next step consisted in fixing the engine to the upper part of the stand.

6. The red and black cables were fastened to the DC engine with the use of a soldering tin and the help of the technology teacher, strengthening the corresponding connections.

7. The propeller was attached to the engine by means of the silicone gun again.

8. In the end, the propeller was painted in silver and black.



4TH year ESO: Solar oven

Choosing the product

After carrying out a hard procedure to decide the product to ellaborate, it was eventually agreed that a solar oven would be the most convenient one for three main reasons:

• We are very involved in the fight against climate change and feel a great interest towards renewable energies. At the same time, we thought that using a new source of energy, in this case solar energy, to build a product created by the students at school could be useful to raise their families and fellows awareness towards ecological matters.
• We liked to create an object which could be used immediately and in daily affairs.
• We wanted to work with materials at hand in order to encourage their families and partners at school to build more solar ovens.

Required materials

Materials which were quite easy to get were used to make the oven:

• Cardboard boxes.
• The recycled glass was the material most difficult to get, mainly because we needed to cut it so as to be adapted to the size of the final product. The Mathematics Department played an important part here and made the procedure easier to carry out.
• Black foamy.
• Aluminium foil to cover the interior of the box.
• Poster board.
• Sheets of newspaper to cover the sides.
• White glue.





  Manufacturing process
  These steps were followed to build the solar oven:
• The first one consisted in detailing the use of the product. We thought it could be used to cook food when going camping or in rural homes with little electric or electronic facilities.
• Then the design of our product was drawn in order to establish both its dimensions and the materials which would be used for construction.
• Later, we arranged the work in a suitable way.


  • We chose two cardboard boxes with different size, one bigger than the other, and we put one into the other.
  • The division sides between both boxes was wrapped with newspaper sheets, which would serve as thermal insulation between the boxes (as paper has a high thermal tolerance and it is a very cheap and easy to get material).
  • The cooking area inside was covered with a reflective material completely. It would allow the redirection of the solar rays. In this case we selected aluminium foil because, even though we were aware that it is spoilt quickly after continuous use, it is very affordable and it served our needs at that time perfectly well.
  • The recycled window glass, which had been previously cut to adapt to the precise dimensions needed, was put on top of the cooking area, leaving a wide space inside to put the food.
  • The product was embellished with poster board and foamy. The foamy protected people from being injured by the sharp sides of the glass at the same time that it served for decoration. It was fixed with silicone to one of the long sides of the outter box and covered with foamy too. This design allowed users to open and close the oven easily.
  • In the end, the commercial name for our product was chosen and we designed a slogan to foster its merchandising.


  AWARDS.
  The products have taken part in a contest and they have won two awards which will be presented in a ceremony at Santiago de Compostela on 14th June 2019.
